LID +
LETID

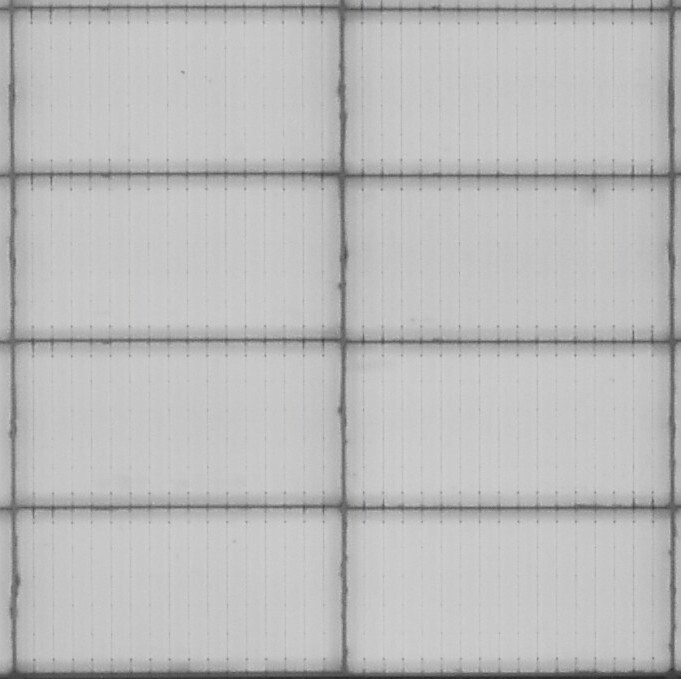

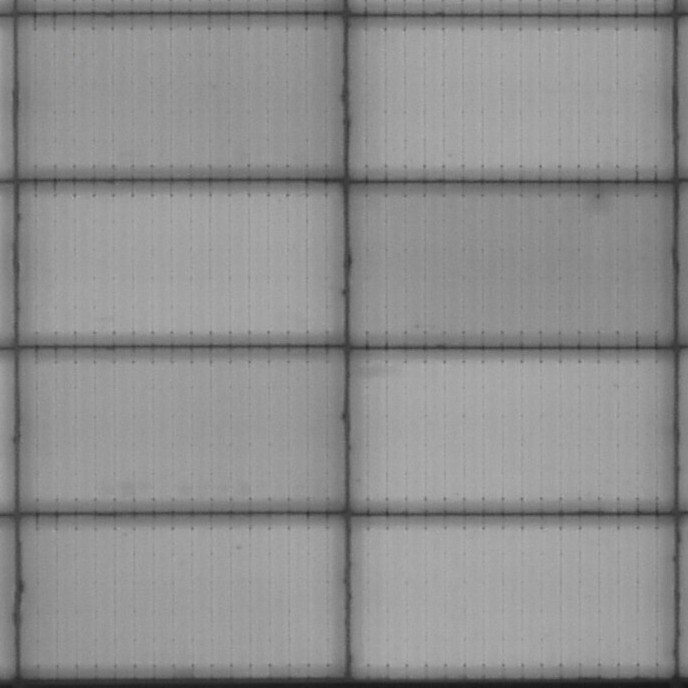

The PQP’s Light Induced Degradation (LID) and Light and Elevated Temperature Induced Degradation (LETID) tests quantify these cell-based phenomena that are often incorporated into energy yield models. LID varies by cell technology but primarily impacts boron-doped cells and stabilizes shortly after module deployment. LETID most predominantly affected early generation PERC cells and is more severe in hotter climates. Degradation from LETID reaches its maximum point after months or years.
Key Takeaways
Minimal Degradation
93% of BOMs tested had < 1% power loss in the combined LID plus LETID.This is slightly down from the 96% of BOMs with < 1% reported in the 2024 Scorecard, but the median and average results were virtually identical for BOMs produced in 2023 and 2024. LID and LETID remain at historic lows. See the Power Degradation graph below for more.
LID by Technology
Low LID values across cell technologies, with statistically no differences.The median LID power loss for 2025 Scorecard eligible BOMs was 0.4% for TOPCon, 0.4% for PERC, and 0.3% for HJT. The average power loss was 0.4% for TOPCon, 0.3% for PERC and 0.4% for HJT. While the sample sizes were lower for PERC and HJT, the LID results were statistically the same regardless of cell technologies.
LETID by Technology
Similar to LID, very little difference is seen in LETID results across cell technologies.The median LETID power loss for 2025 Scorecard eligible BOMs was 0.0% for TOPCon, 0.0% for PERC, and 0.2% for HJT. The average power loss was 0.1% for TOPCon, 0.2% for PERC and 0.1% for HJT. A strong overlap in the range of results for all three cell technologies was also observed.
Initial Failures Decrease
Pre-stress testing failures drop from a high in the 2024 Scorecard.5% of BOMs experienced one or more pre-stress testing failures, down from 11% in the 2024 Scorecard. In the worst example of pre-stress testing failure, one BOM had multiple broken glass modules during LID testing (see the Test Result Spotlight below).Initial safety failures, missing junction box lids and delamination also occurred. See the Failures page for more.
Test Result
Spotlight

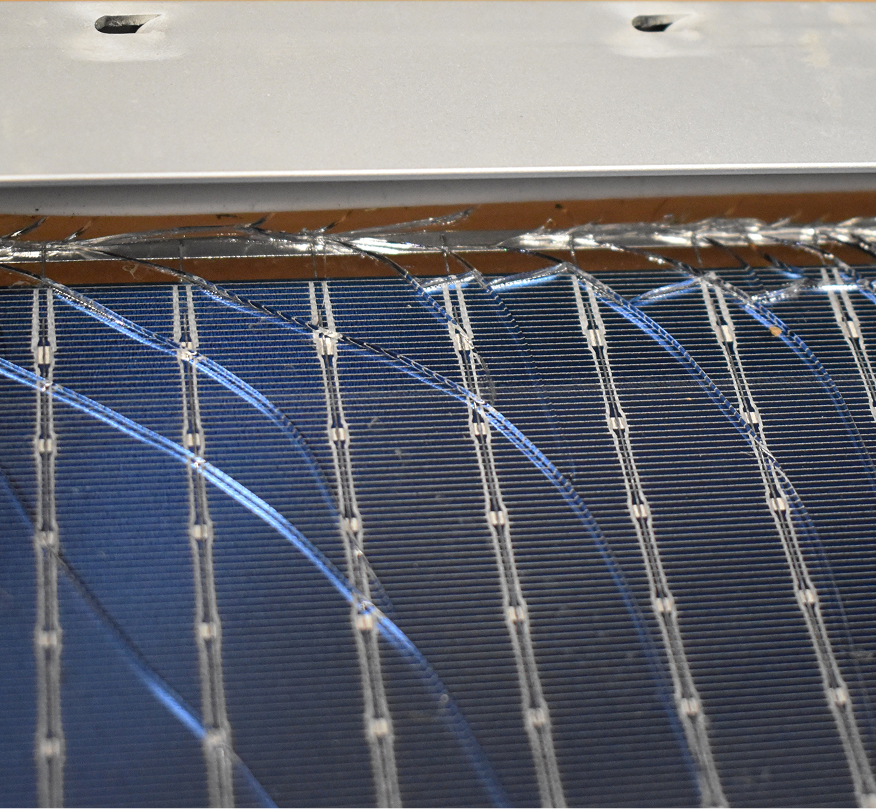

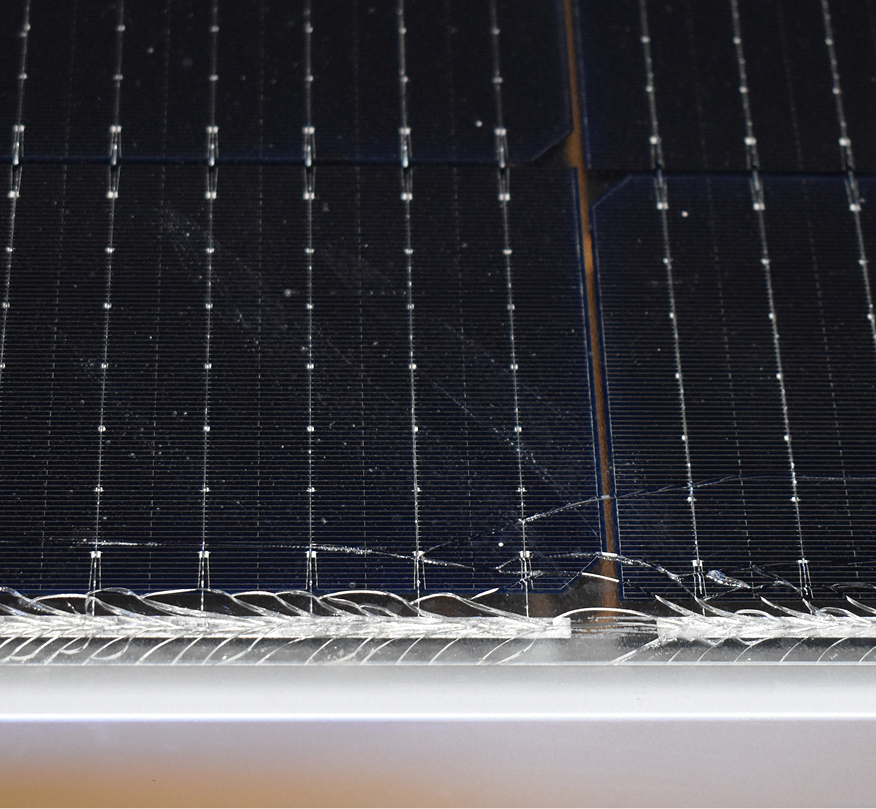

Glass//glass modules experiencing spontaneous glass breakage is the most significant reliability issue affecting today's PV modules. Kiwa PVEL is aware of it occurring in multiple countries, with multiple module model types, mounted to multiple tracker/racking solutions. While this is not a failure mode often associated with LID and LETID testing, Kiwa PVEL was surprised to recently see six of 20 modules from one BOM showing a unique glass breakage pattern following outdoor LID. The cracks along the busbars indicate a lack of encapsulant along the laminate edges, leading to edge-pinch induced stress concentration points between the metal busbar and the glass surface.

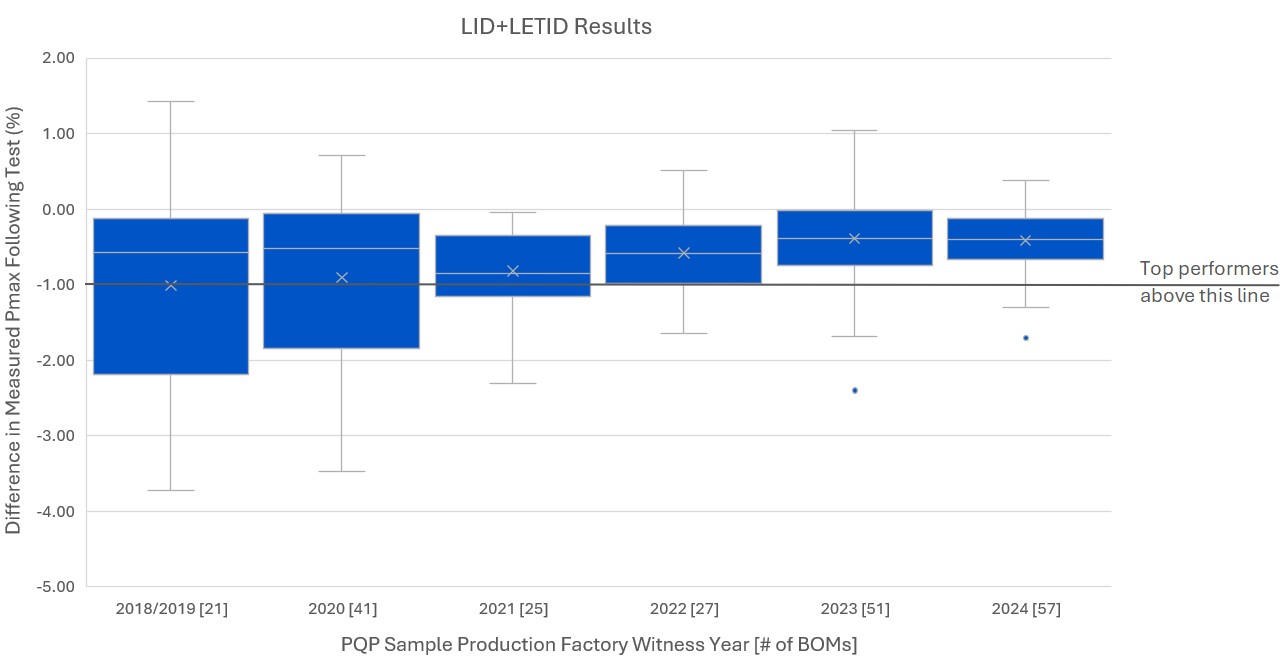

Power Degradation of
Top Performers
See LID + LETID
Top Performers
Click here to see the 291 BOMs listed as LID + LETID Top Performers.
Before 2023, all results are average LID + average LETID486. 4% of 2023 results and 93% of 2024 results are average LID + average post-CID to post-LID324.
View Box Plot Interpretation Guide
Kiwa PVEL Premium Partners receive more detailed Scorecard data every quarter, sent right to their inbox. Sign up as a Kiwa PVEL Premium Partner
Join Now Continue Exploring the 2025 Scorecard
Next Page
